Fig. 5

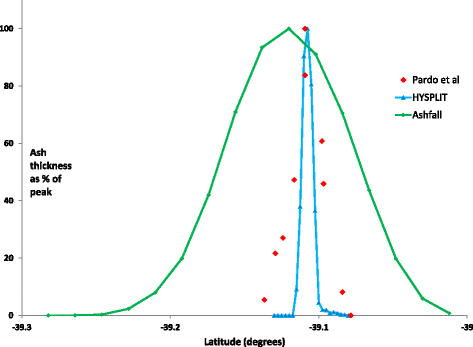

North-south ash distribution profile from the Te Maari eruption of Tongariro at approximately 12 km downwind at 175.81° E, showing modelled thicknesses from ASHFALL and HYSPLIT, and actual ash thicknesses from Pardo et al. (2014), with maximum thicknesses normalised to 100
